Inner Wall of Steel Pipe Shot Blasting Machine

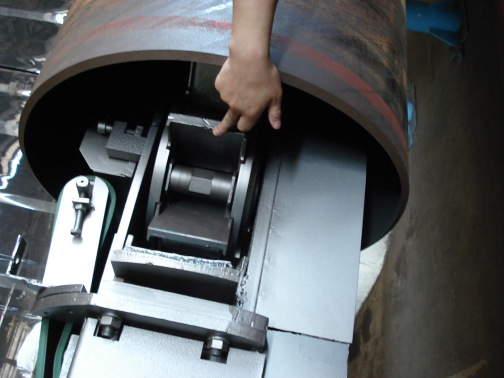

The inner wall of steel pipe shot blasting machine is a new type of cleaning equipment for processing the inner wall of steel pipes of different sizes in our company. It has super strong processing capability. It can be based on

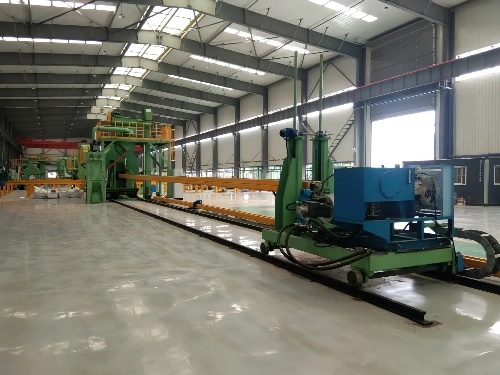

The pipe diameter of the steel pipe is different and different shot blasting or shot Blasing processing equipment is selected. Among them, shot blasting cleaning is driven by hydraulic motor, and shot Blasing cleaning is driven by starting motor. Our company designs small steel pipe shot blasting machines with large diameter inner wall shot blasting machine and diameter below 600mm. The equipment adopts automatic shot blasting to remove surface corrosion, and uses high-speed projectile flow beam which is efficiently thrown blast wheel to crush the oxide skin, rust layer and its sundries on the inner surface of the steel pipe to obtain a fine bright surface, improve the tensile and compressive strength of the workpiece, increase the adhesion for the coating protection of the inner surface, and achieve the purposes of corrosion prevention, pipe protection and prolonging the service life of the steel pipe. The finish and roughness of the surface of the workpiece after cleaning conform to relevant standards and regulations. Small-caliber steel pipe uses Inner Wall shot blasting machine and inner wall of steel pipe shot Blasing processing line, mainly including mobile trolley, sand bucket, sandblasting tank, spray gun, spray gun bearing truck, steel pipe bearing system, bottom projectile conveying belt machine, bucket elevator, maintenance platform, separator, dust removal system, bracket, pneumatic system, compressed air system, electronic control system.

During the cleaning process, the projectile and recycling system adopt wind conveying system. The projectile can be recovered by dust removal system negative pressure inside the steel pipe. When reaching the sealed attachment Chamber, because the auxiliary room space disappeared instantly plus-sized the pneumatic conveying force, the projectile landed on the projectile recovery Belt machine.

Technical parameters

Composition

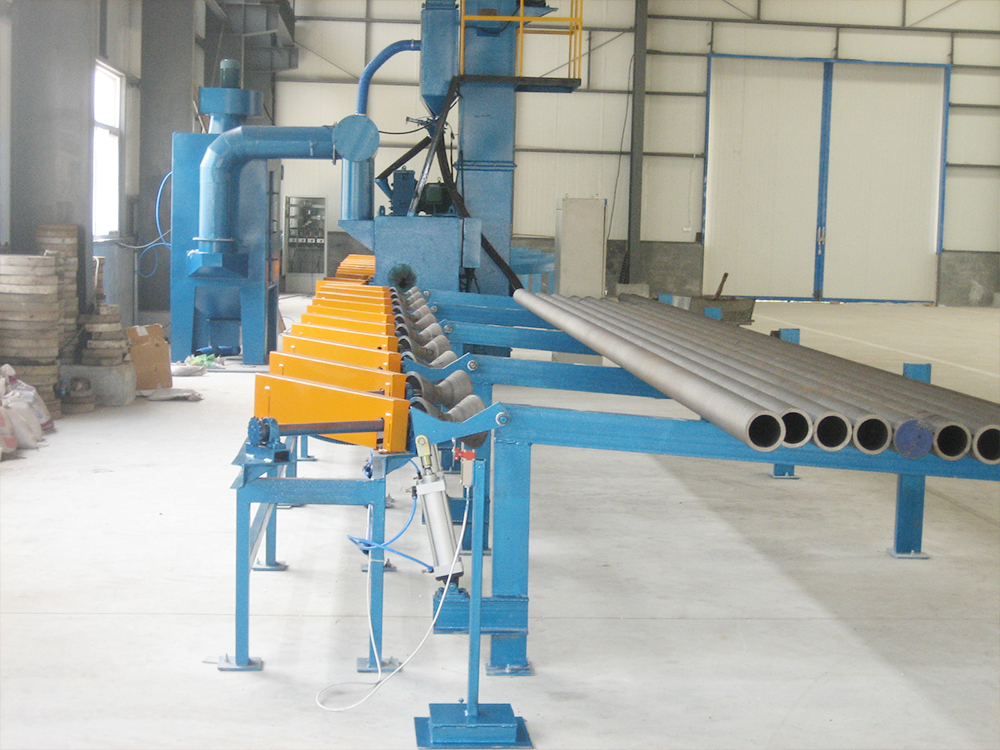

Steel pipe shot blasting machine consists of feeding roller, shot blasting machine, discharging roller, blanking mechanism, pneumatic control system, electric control system and dust removal system, etc. Shot blasting cleaning machine consists of shot blasting chamber, blast wheel assembly, shot sliding bucket and grille, pill slag separator, elevator, platform ladder railing, shot feeding system and other components.

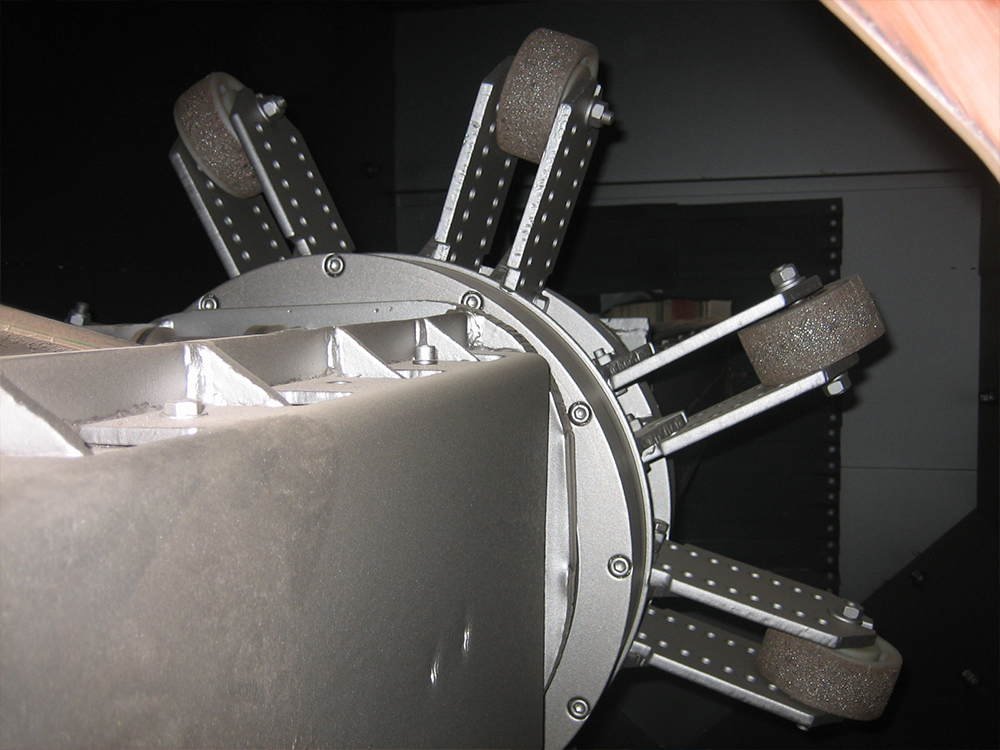

Steel pipe shot blasting machine adopts a filter cartridge dust collector, and a one-piece centrifugal polishing head can throw the abrasive out in a controllable way and direction, and the pellet is circulated. The size of the sealing ring can be adjusted to suit pipes of different diameters, and it is easy to replace. Different from other surface cleaning and pretreatment methods, the shot blasting cleaning process without chemical reaction process will not cause pollution to the environment. Steel pipe shot blasting machine is easy to install, low cost, small space occupation, no pit or other discharge pipeline.
