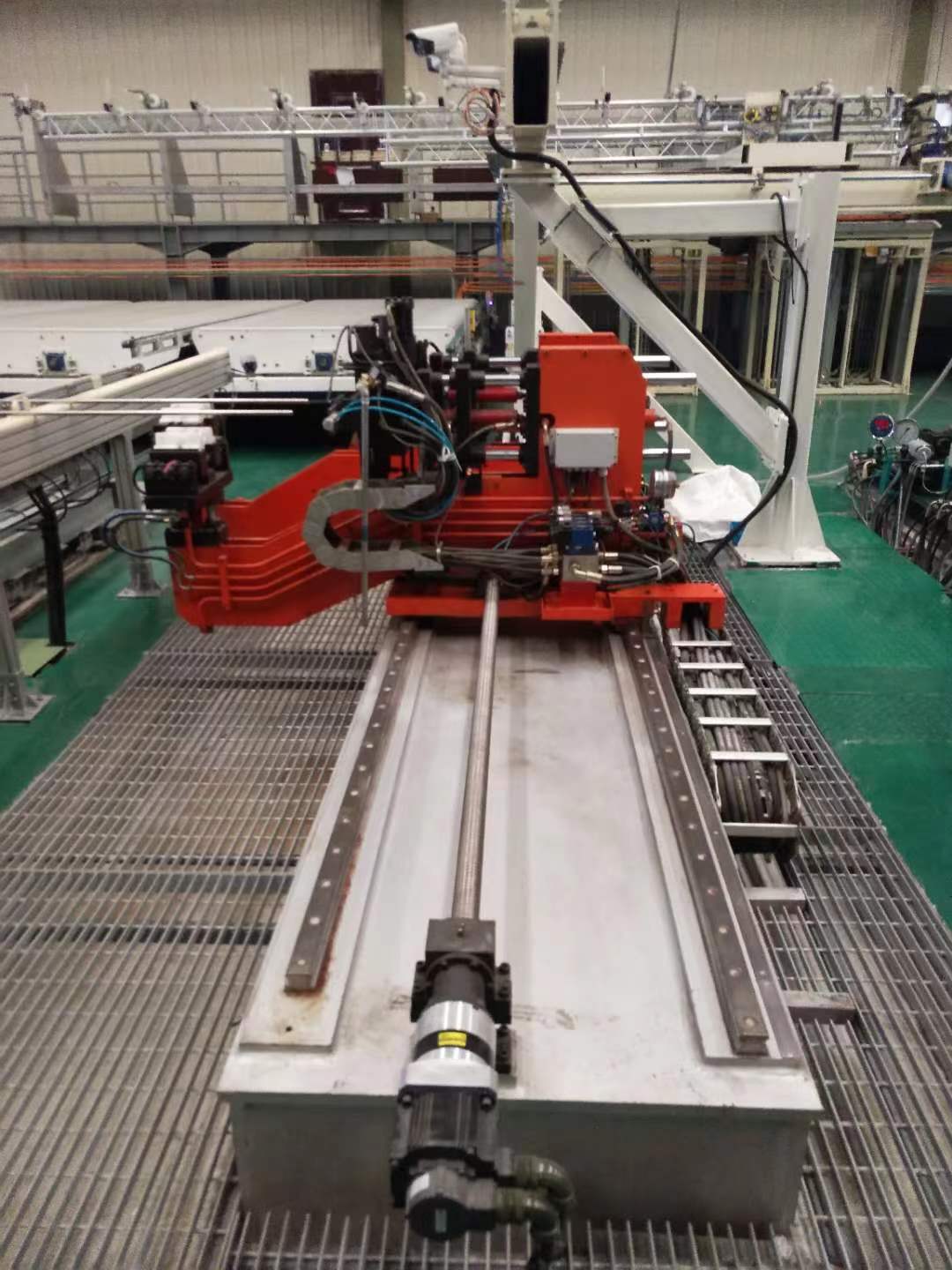

U-Tube Hydrostatic Testing Machine

At Marley Machinery, we manufacture U-Tube Hydrostatic Testing Machines for steel pipe manufacturers that need reliable hydrostatic pressure testing as part of their production process.

This equipment is designed for industrial steel pipe testing, where the pipe is positioned in the testing station, sealed at the ends, filled with water and subjected to the specified internal pressure. The machine configuration is developed around the customer's actual pipe dimensions, testing pressure, production rate and plant layout.

We do not manufacture this equipment as one fixed standard model. Each U-Tube Hydrostatic Testing Machine is configured according to the steel pipe range and testing requirements provided by the customer.

U-Tube Hydrostatic Testing Machine Configuration

The following table describes the main items we consider when designing the machine. The final specifications are confirmed for each individual project.

These are design parameters rather than fixed machine specifications. Marley Machinery confirms the working range and technical configuration after receiving the customer's pipe and production data.

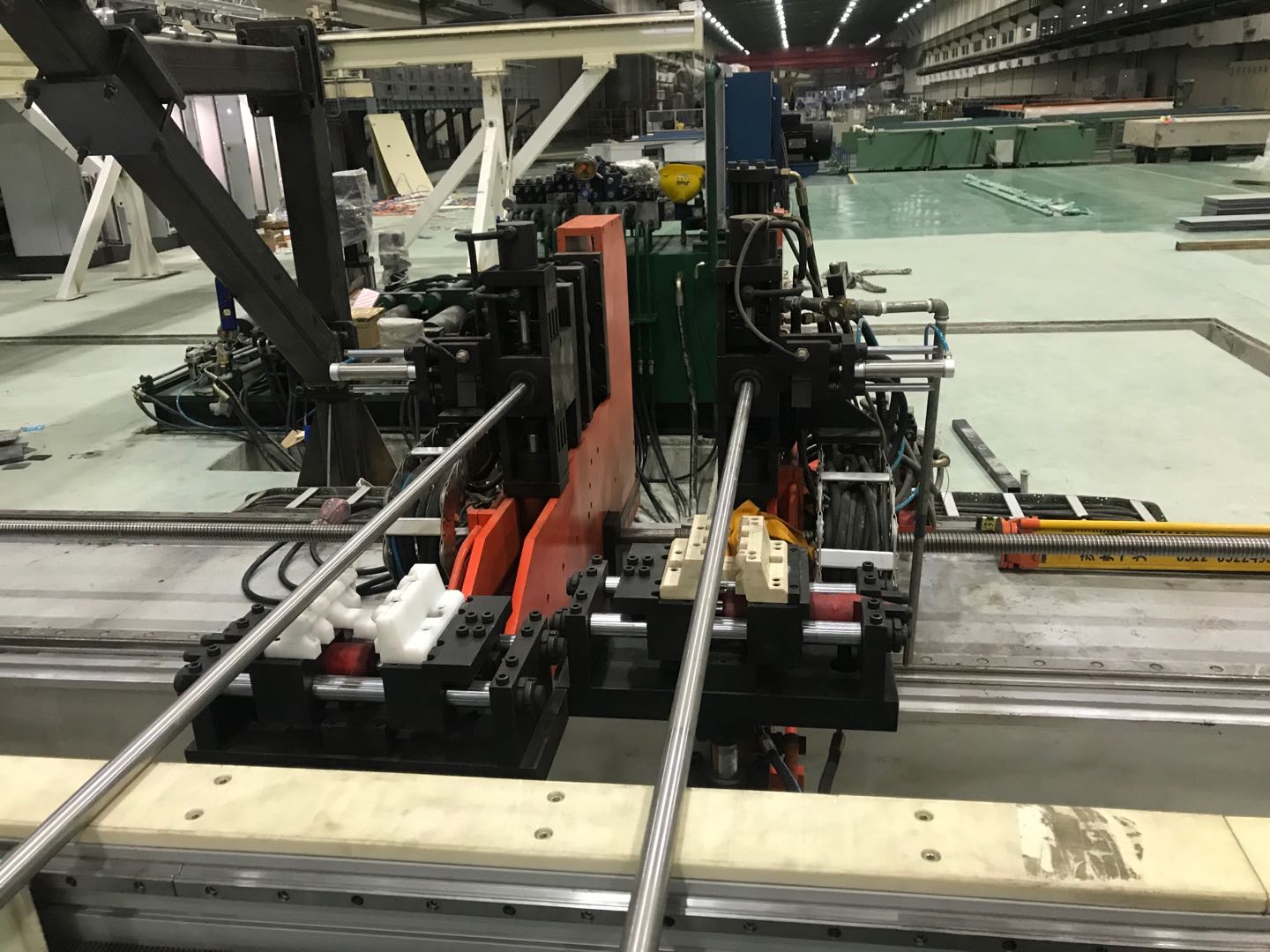

What Is a U-Tube Hydrostatic Testing Machine?

A U-Tube Hydrostatic Testing Machine is a large industrial machine used to perform hydrostatic pressure testing on steel pipes.

The basic purpose is straightforward: water is introduced into the pipe and the internal pressure is raised to a specified testing value. The pressure is then held for the required period while the pipe is checked for leakage or other unacceptable conditions.

The U-shaped machine arrangement provides a practical structure for integrating the testing heads, hydraulic equipment and pipe handling system within a steel pipe production line.

The exact mechanical arrangement depends on the customer's pipe dimensions and production layout.

At Marley Machinery, we focus on the complete testing process rather than treating the machine as simply a pressure pump and sealing device.

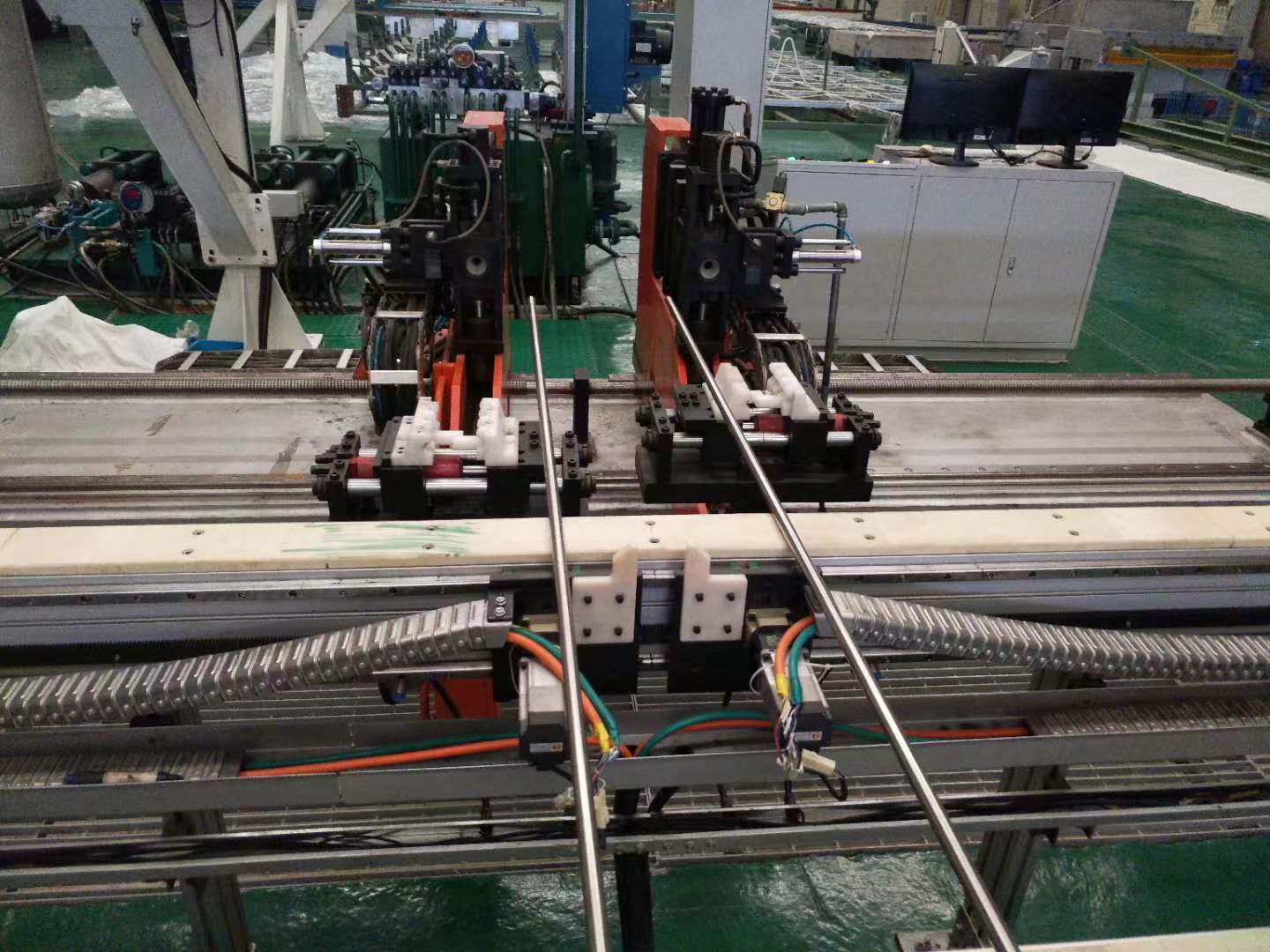

How Our U-Tube Hydrostatic Testing Machine Works

The testing sequence is configured according to the customer's production process, but the main operations normally include:

For automated production lines, these operations can be coordinated through the PLC control system.

Steel Pipe Hydrostatic Testing

The purpose of hydrostatic testing is to verify the pressure integrity of the finished steel pipe under the specified test conditions.

Depending on the pipe and applicable testing requirements, the test can help identify:

• Leakage through the pipe body
• Leakage around the weld area
• Problems at the pipe ends or sealing area
• Defects that affect pressure integrity
• Abnormal pressure loss during the holding period

The actual acceptance criteria are determined by the customer's applicable pipe standard, specification and inspection procedure.

We therefore do not apply one universal testing pressure or holding time to every machine.

Main Design Considerations

When we design a U-Tube Hydrostatic Testing Machine, several parts of the system have to be considered together.

Pipe Dimensions

Pipe outside diameter, length and wall thickness directly affect the machine structure, testing head movement, sealing system and hydraulic capacity.

A machine for one pipe size is not necessarily suitable for a production line covering a wide diameter range.

Testing Pressure

The required test pressure determines the selection of the hydraulic system, valves, pressure measurement components, sealing arrangement and related safety functions.

For high-pressure applications, stable pressure control is just as important as reaching the target pressure.

Pipe-End Sealing

The sealing system has a direct influence on testing reliability.

Depending on the pipe dimensions and test conditions, we can configure different sealing arrangements, including:

• Pipe-end face sealing
• Internal sealing
• External radial sealing
• Other customized sealing arrangements

The final sealing method is selected according to the customer's pipe end condition, diameter, wall thickness and test pressure.

Production Capacity

Testing speed is not determined only by the hydraulic pump.

The complete cycle includes pipe positioning, sealing, filling, pressurization, pressure holding, pressure release and unloading. If the customer has a defined production target, we use the required cycle time to determine the appropriate machine and testing-station arrangement.

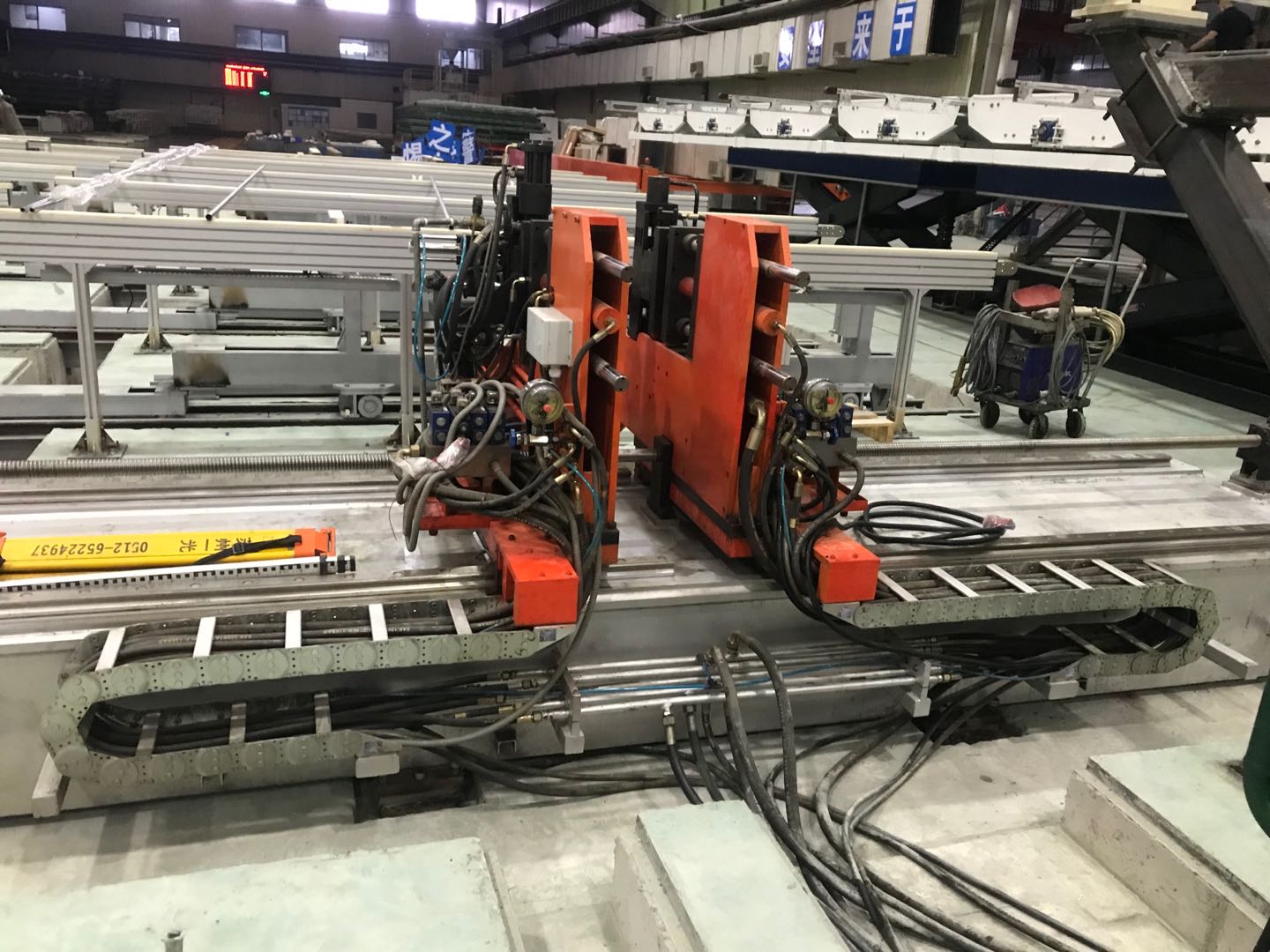

PLC Control System

We can integrate a PLC and HMI or industrial computer into the U-Tube Hydrostatic Testing Machine.

The control system can coordinate the main testing operations, including:

• Testing head movement
• Pipe positioning
• End sealing
• Water filling
• Pressure build-up
• Pressure holding
• Pressure release
• Water drainage
• Equipment interlocks
• Alarm monitoring
• Testing cycle control

The level of automation depends on the customer's production line and operating method.

For a fully integrated steel pipe production line, the testing machine can also be coordinated with upstream and downstream pipe handling equipment.

Water Filling and Recycling System

Hydrostatic testing requires a reliable water supply and drainage arrangement, particularly when the equipment operates continuously in a steel pipe mill.

At Marley Machinery, we can configure the water system according to the production process.

The system may include:

• Water storage
• Pipe filling
• Water supply
• Pressure testing
• Drainage
• Water recovery
• Water recycling

Where required, the customer can use a suitable water-based anti-corrosion treatment according to the pipe material and plant process.

The final water treatment arrangement is determined by the customer's production conditions rather than being fixed as part of one standard machine model.

Applications of U-Tube Hydrostatic Testing Machine

Our U-Tube Hydrostatic Testing Machine is intended for industrial steel pipe production and inspection applications.

The actual application depends on the pipe specification, testing standard and customer's production requirements.

U-Tube Hydrostatic Testing Machine for Different Pipe Sizes

A production line may need to test several steel pipe sizes rather than one fixed diameter.

In this situation, we look at the complete pipe range before designing the machine.

This is why we prefer to design the equipment around the customer's actual production data instead of offering a generic machine specification.

What We Need From the Customer

When a customer contacts Marley Machinery about a U-Tube Hydrostatic Testing Machine, we normally ask for the following information:

1. Steel pipe outside diameter range
2. Pipe length range
3. Wall thickness range
4. Pipe material
5. Seamless or welded pipe
6. Required test pressure
7. Pressure holding time
8. Required testing standard
9. Target production capacity
10. Available installation space
11. Required automation level

Even preliminary data is useful at the beginning of a project. We can then discuss the machine arrangement and determine which technical details need to be finalized.

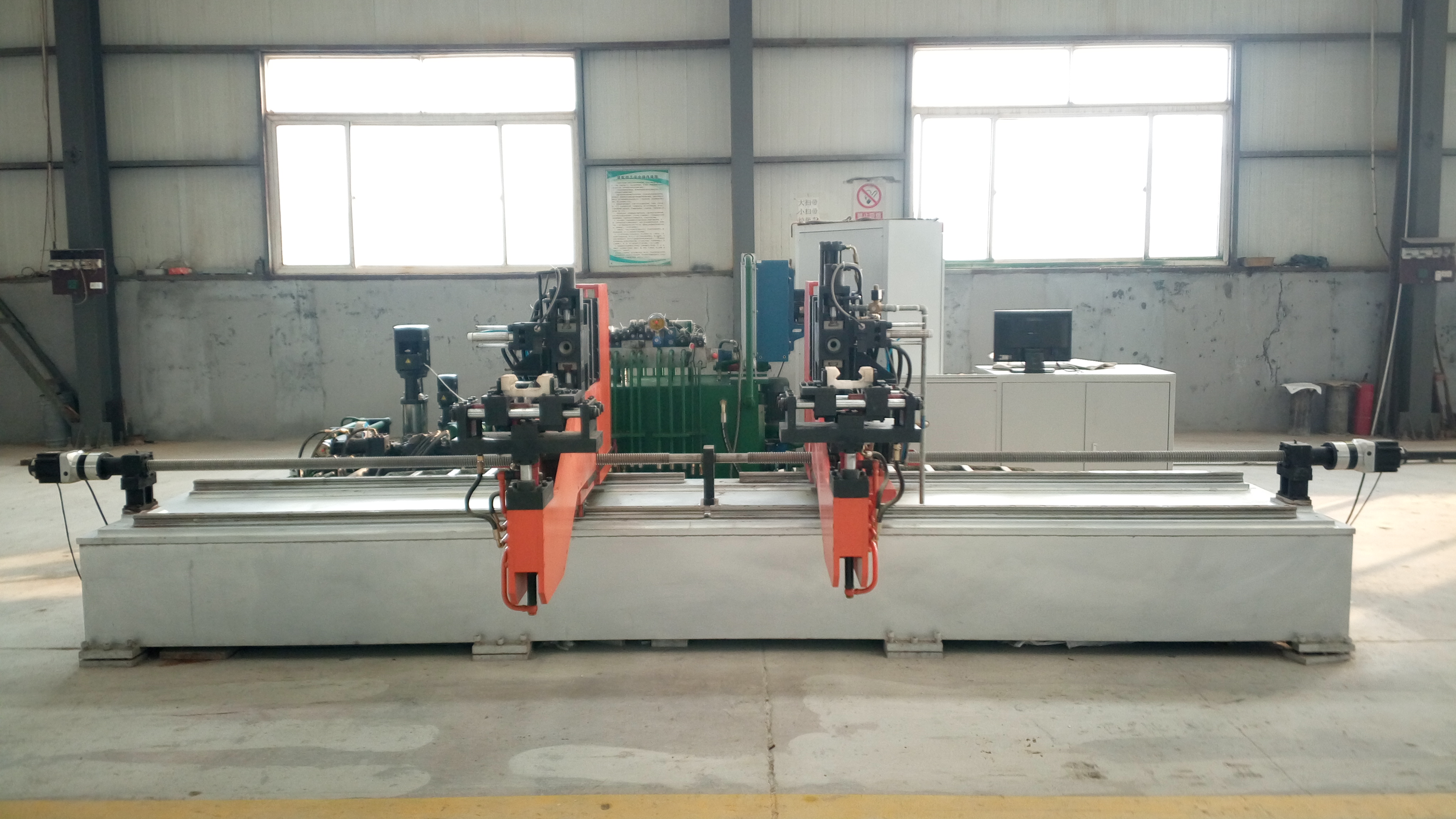

Marley Machinery U-Tube Hydrostatic Testing Machine

At Marley Machinery, we manufacture customized hydrostatic testing equipment for steel pipe production lines.

Our U-Tube Hydrostatic Testing Machine is designed around the pipe rather than around a fixed catalogue specification. The testing heads, sealing system, hydraulic circuit, pipe handling, control system and water system are selected according to the customer's actual requirements.

For us, the important part of a hydrostatic testing machine is not simply achieving a specified pressure. The machine has to handle the complete testing cycle in a controlled and repeatable way while fitting the customer's production line.

If you are planning a new steel pipe testing line or upgrading existing testing equipment, send us your pipe diameter, pipe length, wall thickness, required test pressure, pressure holding time and production capacity. We can use these details to discuss the appropriate U-Tube Hydrostatic Testing Machine configuration for your application.
